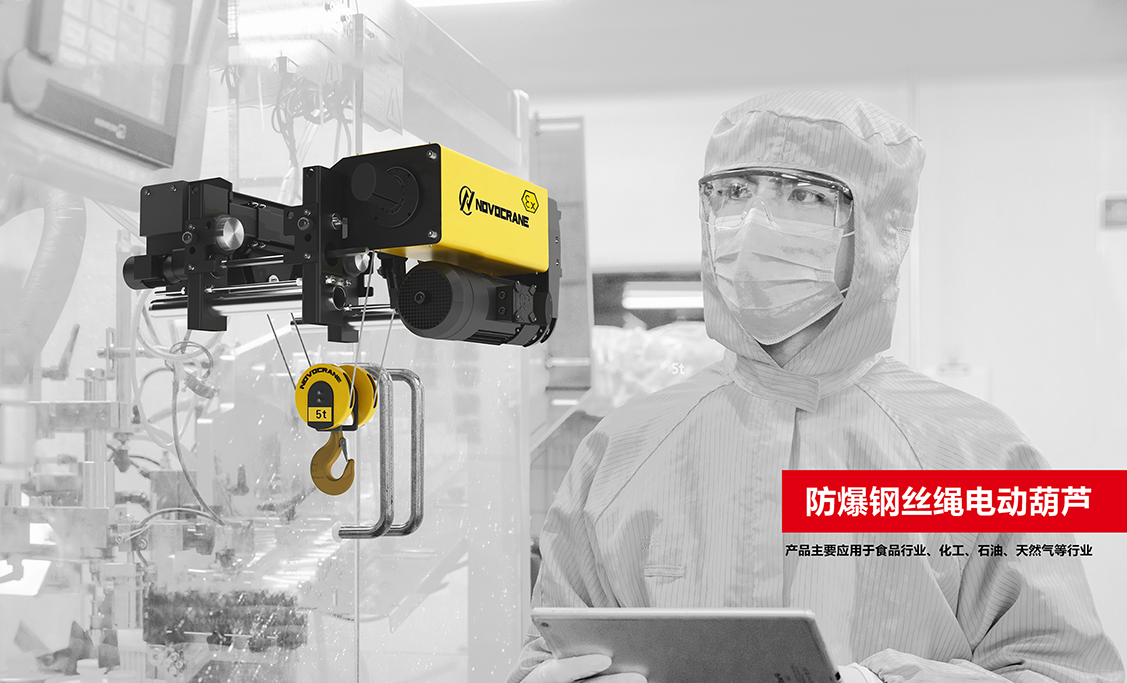

Ordinary electrical equipment in the production environment will friction will produce sparks? Flammable and explosive working environment? For the food industry, chemical industry, petroleum, natural gas and other applications that have special requirements for safe production, Novo launched a new explosion-proof electric hoist series products NWHEX, with consistent quality persistence and research and development pursuit, to provide a solid guarantee for customers' safe production and efficiency improvement.
Latest European standard
Our advantage
The combination of two-speed motor and brake with protection class IP66 is used as the lifting and operation drive, making the equipment easier to maintain and safer to use.
The lifting and running reducer is lubricated with a fully enclosed oil bath to effectively avoid sparks and wear caused by gear transmission. The case of the reducer is made of cast steel and ductile iron materials, which can be applied to more demanding explosion-proof environments.
The wheel is made of stainless steel and vacuum quenching process, which can effectively improve the life of the wheel and avoid sparks caused by friction between the wheel and the track.
The hook material is treated with high-density copper, and the thickness of the copper film is greater than 60 microns, which effectively prevents sparks caused by contact.
The multi-stage lifting height limiter installed at the end of the drum effectively realizes the function from high speed to slow speed and then to stop, and the operation is safer.
The mechanical load limiter is easy to adjust and reliable to limit the load.
Pulley using ductile iron material, larger rope diameter ratio can effectively improve the service life of the wire rope.
Modular, combined explosion-proof electric control box, protection grade IP66, easy maintenance, high safety performance.
